|Color:||Blue||Max Feeding Width:||1350mm|
|Max Cutting Width:||1260mm||Repeating Precision:||0.082mm|
|Drive:||DC Servo||Packing Size:||171 X 36 X 49cm|
vinyl sign cutter plotter,
servo motor vinyl cutter

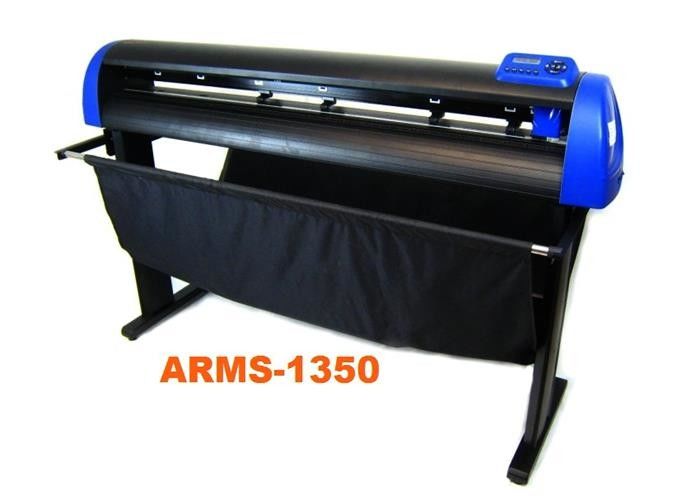

1350mm Arms Servo Cutting Plotter machine Plotter - Precision Automatic Cutting Plotter
The ARMS servo motor is quieter and more efficient than a comparable stepper motor which is part of what makes it a professional's vinyl cutter. Servo motors are faster and more accurate but require more complex drive circuitry and positional feedback. To achieve this, servo motors maintain their torque rating at high speeds because they do not operate at maximum capacity, leaving power in its reserves. In addition to the back lit LCD, the NPC features illuminated buttons for easier reading. The ARMS servo motor makes it faster, quieter, more accurate and able to cut thicker material.
SERVO ARMS vinyl cutters are constructed to withstand rigorous use and are built tough from the inside out. From the aluminum alloy frame and ABS end caps to the double ball bearing blade holders, it is built to last. MAC and Windows compatible with built in USB interface, the NPC machines are plug-n-play ready.
This cutter offers a true USB - a feature usually offered only on cutters costing many hundreds or even thousands of dollars more. Send files directly to your ARMS cutter directly from Adobe Illustrator, Corel Draw, Inkscape or other software products that support vector graphics.
Automatic Laser registration for contour cutting function

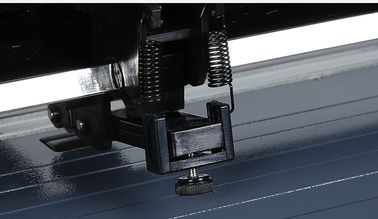

Cutting head with 4 wheels
True USB - send files directly to the cutter from Adobe software and other applications that support Vector Graphics
Strong metal, precision ABS sides
All metal moving parts

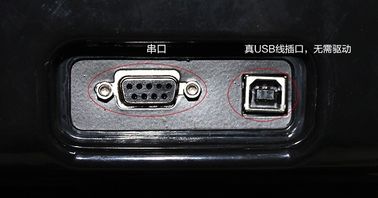

Mac & PC compatible USB and RS-232 connection
Large LCD display & control panel for adjusting speed and cutting force
Plug and Play - simple installation
Cuts adhesive vinyl, heat transfer vinyl, cardstock, paint mask stencil, laminate, sandblast mask, low & high intensive reflective material
Servo motor for quiet and accurate performance
|Maximum cutting width||1350mm|
|Cut Professional Software||Dragoncut|
|CPU||64bit DSP 32MFlash|
|Encoder signal||physical 1000line/ round, logical 4000line/round|
|0-3000RPM time||< 20 MS(idle load); <1200 MS(working)|
|Servo motor speed||0-3500RPM|
|Motor power||25 watt|
|Motor& Driver||DC servo|
Mainly used for advertising,decoration, logo label production, craft gifts, clothing foreign processing various manufacturing processing industries.
