High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency

High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency
High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency

Large Image :  High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency

Product Details:

Place of Origin: Anhui
Brand Name: Refine
Certification: CE
Model Number: DC-240

Payment & Shipping Terms:

Minimum Order Quantity: 10units
Price: Negotiable
Packaging Details: 190mm x 2000mm
Delivery Time: 20-25 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000units per month
Detailed Product Description
Size: 190mm X 2000mm Color: Black;White;Red;Blue
Driver: Step Motor Configuration: Grit-rolling
Interface: USB 2.0 Language: DM/PL HP/GL
High Light:

graphtec sticker cutting machine

,

contour vinyl cutter



                    Mini Craft Cutting Plotter with Stepping Motor Vinyl Cutter







Mini Cutting Plotter is a mini desktop cutting and drawing plotter, it is used to cut pattern which is designed by
computer and printed on paper or plastic sheet, and it has a laser positioning device to achieve contour
cutting. You can draw, cut, and kiss-cut shapes around, and cut polyester sheets, cartoon or other Vinyl for
your business and hobbies.
The cutter plotter is powered by a 16V DC adaptor, and it is compatible with Windows 7, VISTA, XP, 2003,
2000. A Windows driver is provided and enables output from leading drawing software (e.g. CorelDraw, Adobe
Illustrator), you can directly edit pattern in CorelDraw, Adobe Illustrator and other software, and then send the
pattern to Mini cutting plotter for cutting.
The machine is used widely to cut sign vinyl, stickers, cardboards, film paper, polyester sheets, transfer paper,
flocking cloth, cartoon or other Vinyl, which can be made paper models, puzzles, gift box, three-dimensional
greeting cards, business cards, fancy cards, invitations, photo stickers, name stickers, paper cuts, scrapbooks,
clip arts, cartoon stamps and fridge magnets so on. It is ideal choice for shops, offices, schools, and family.







Parameters:



Model DC-240
Effective sheet width A4 size supported
Cutting force C60g to 300g (7 levels selectable)
Cutting speed 10 - 280 mm/s ( 7 levels selectable)
Software resolution 0.0254mm/step 1000DPI
Working environment 5 to 30 °C, 35 to 80% R.H. (Non-condensation)
Power requirements Windows 2000/XP/Vista32/Windows 7
Power supply

Dedicated adapter, OUTPUT: DC 16V 2.5A,INPUT:AC100V~240V ;
47Hz~66Hz

Software Compatibility Flexi Sign (Full version); WinPC Sign; Signcut; Artcut; CorelDRAW






High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency 0



Main features:


• Streamlined body, compact, small footprint, easily and widely used.
• With laser positioning function, contour cutting can be achieved.
• Convenient controlling panel
• With a high-quality pinch roller
• With a blade and drawing pen, the functions of cutting and drawing can be achieved.
• With a Cutting mat, a single material can be cut







High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency 1

Streamlined body, compact, small
footprint, easily and widely used
Streamlined body with small footprint,
you can place it on desk, steadily, and
save space. The cutter is operated easily
and used widely.

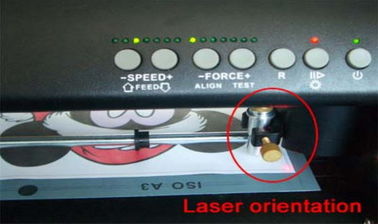

With laser positioning function,
contour cutting can be achieved
The laser positioning function is very
useful, it can cut all kinds of pictures
rather than only single color pictures,
you can print pictures on material firstly,
and laser positioning, then cut the
contour



Convenient controlling panel
The panel provides handy adjustment
for user requirement, you can adjust
corresponding button, and the light will
be on, very intuitional and practical



With a high-quality pinch roller
The pinch roller can press the paper
steadily, make sure the paper not move
left or right



With a blade and drawing pen, the
functions of cutting and drawing
can be achieved.

The cutting plotter can not only cut
materials, but also draw graphs, only
need replace the blade by drawing pen.



With a Cutting mat, a single
material can be cut.
The cutting mat surface is sticky, when
cutting the single material, you only
need stick it to the cutting mat, it will
support the material to cut easily











High Precision Vinyl Cutter Sign Cutting Plotter USB 2.0 Interface 47Hz~66Hz Frequency 2









Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2) For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping.It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods.
Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.




Company introduction:
Hefei Gere-tech International Co.Ltd.Is a firm with 10+ years of histroy.We devote ourselves in R&D on signage and Sublimation industries.Our Refine brand cutting plotters and heat press are very popular in North America,Europe, Latin America, Asia and Africa.
We alway provide quality products, reasonable prices as well as best possible after-service!We offer quality guarantee.Our service time is weekly 7days x 15hours/day.
We have professional and steady sales + service staff, which is our biggest advantage among most Chinese competitors!
We promise!We guarantee!

"Gere-tech" is your correct and long-term buiness partner!
