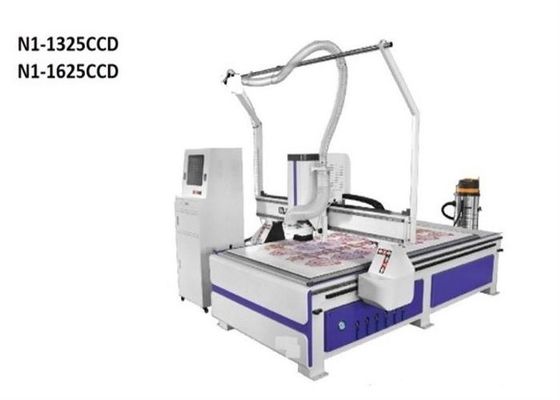

Double System Hybrid Servo CNC Engraving Machine For UV Printed Item And Various Materials

Double System Hybrid Servo CNC Engraving Machine For UV Printed Item And Various Materials
Double System Hybrid Servo CNC Engraving Machine For UV Printed Item And Various Materials Double System Hybrid Servo CNC Engraving Machine For UV Printed Item And Various Materials

Large Image :  Double System Hybrid Servo CNC Engraving Machine For UV Printed Item And Various Materials

Product Details:
Place of Origin: Anhui
Brand Name: Refine
Certification: CE
Model Number: N1-1325CCD
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood Case; 1300*2500*180mm
Delivery Time: 20-25 work days
Payment Terms: T/T, Western Union
Supply Ability: 300units per month
Detailed Product Description
Drive: Hybrid Servo OTT Drive: Leadshine AC Servo
Weight: 1400kg Table Top: PVC And Alluminum Alloy
MAX Speed: 20000mm/min Table Size: 1440*2500mm
High Light:

Double System CNC Engraving Machine

,

Hybrid Servo Drive CNC Engraving Machine

,

UV Printed Item CNC Engraving Machine

Double Systems Hybrid Servo CNC Engraving Machine For UV Printed Items N1-1325CCD

Hybrid Servo CNC Engraving Machine For UV Printed Items Contour Cut.Easily Exchange Double Systemsbeteen CNC Router And

CNC Engraving Machine for Contour Cut of UV Printed Items





Standard Features:

1: Contour is output by program automatically, which saves much time and work for users.
2: Industrial steel pipe frame, with stable moving,low noise and high precision.
3: High precision helical rack pinion in X Y, plus linear rail, ensure the high precision.
4: With leadshine hybrid servo,low noise and high accuracy.
5: It can mark the contour by camera eye also can do 3D cutting, multifunction in one machine.

Applicable Fields

Oscillating knife: To cut KT board, PVC ( MAX.thickness 7mm ),leather, fabric (one layer ) with OTT.
Spindle: To cut Acrylic, MDF, Solid, Aluminum, Brass and so on by Spindle motor.
Easily exchange double systemsbeteen CNC router and CCD cutter.

Technical Parameters


Model N1-1325CCD
Table size 1440*2500mm
Working size 1300*2500*180mm
MAX.Material height 200mm
Spindle power Water cooling 3kw
Spindle RPM 0-24000rpm
Tool diameter 3.175, 4, 6, 8, 12.7
Drive Hybrid servo
OTT drive Leadshine AC servo
CNC Weihong + CCD
Mechanical structure Industrial square steel pipe
Transmission Ball screw for Z axis; Pully-Gear rack for X,Y
X,Y,Z Guide rails Linear Rails
Repositioning accuracy <0.03mm/300mm
MAX.speed 20000mm/min
File transfer USB
File format HPGL or standard G code
Power supply AV220V or 380V, 50-60Hz
Table top PVC and alluminum alloy
Dust collector High vollume vacuum
External dimension 2100*3200*1900
Weight 1100/1400kg
Vacuum pump Air cooling or water cooling 7.5kw 380V



Double System Hybrid Servo CNC Engraving Machine For UV Printed Item And Various Materials 0



Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2) For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping.It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods.

Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.

Company introduction:
Hefei Gere-tech International Co.Ltd.Is a firm with 10+ years of histroy.We devote ourselves in R&D on signage and Sublimation industries.Our Refine brand cutting plotters and heat press are very popular in North America,Europe, Latin America, Asia and Africa.
We alway provide quality products, reasonable prices as well as best possible after-service!We offer quality guarantee.Our service time is weekly 7days x 15hours/day .
We have superior and steady sales + service staff, which is our biggest advantage among most Chinese competitors!
We promise!We guarantee!

"Gere-tech" is your correct and long-term buiness partner!
