1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine

China Hefei Gere-Tech International Co., Ltd. certification
I'm Online Chat Now

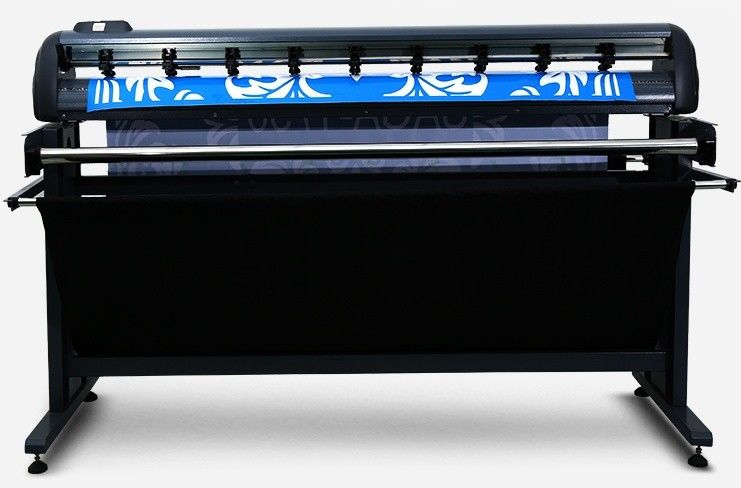

1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine

1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine
1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine

Large Image :  1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Refine
Certification: CE
Model Number: ARMS-1750
Payment & Shipping Terms:
Minimum Order Quantity: 3units
Price: Negotiable
Packaging Details: Cartons ; 207 x 36 x 51cm
Delivery Time: 10-20days
Payment Terms: Western Union, T/T
Supply Ability: 1000pcs
Detailed Product Description
Color: Black Repeating Precision: 0.082 Mm
CPU: 64bit DSP 32M Flash Force: 0-750g (3g/step)
Motor Power: 25watt Servo Motor Speed: 0-3500 RPM
Curve Speed: 23.6 Inches/s (0-600mm/s) Straight-line Speed: 50-960mm/s
High Light:

contour cutting vinyl cutter

,

vinyl sign cutter plotter



            Vinyl Cutting Plotter Servo Cutting Plotter Automatic Registration Marks Sensor







Highlight Features:



All four registration marks are automatically detected by the Servo ARMS system.

No need to manually move the Cutting head!

Only feed media I, and activate the ARMS system. Then machine will do all jobs by itself.

Contour cutting multiple images is just as easy as cutting one single image. Cutting multiple images accurately using Servo ARMS system with significant effect!





True USB

No need to install usb driver, easy to use and reliability.





Servo ARMS,Automatic Registration Mark System

● High force cutting head with 4 wheels
● Aluminum alloy construction, ABS end caps, welded steel stand
● Straight-line Max. Speed: 37.8 inches/s (960mm/s)
● Curve Max. speed: 23.6 inches/s (0-600mm/s)
● Motor & Driver: DC servo
● Motor power: 25watt
● Servo motor speed: 0-3500 RPM
● 0-3000 RPM time: < 20 MS(idle load); <1200 MS(working)
● Encoder signal: physical 1016 line/ round, logical 4064 line/round
● Max. force: 1.65lbs [750g (3g/step)]
● CPU: 64bit DSP 32M Flash
● Mechanical Resolution: 0.0005 inches/pulse (0.01254 mm/pulse)
● Repeating Precision: 0.003 inches (0.082 mm)







Technical Specifications:

Model ARMS-1750

Max. media width

1750mm

Max. cutting width

1660mm

Accuracy

+/- 0,01mm

Connectors

USB/RS-232

Drive

DC Servo

Force 0-750g (3g/step)

Power consumption

< 100W

Ambient temperature

+5°C - +35°C

Meas

207 x 36 x 51cm

Motor power 25watt

G.W.

52kg
N.W. 47kg

Mechanical Resolution

0.01254 mm/pulse




Pictures show


 1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine 0



1750mm Vinyl Servo Cutting Plotter Automatic Sensor Vinyl Contour Cutting Machine 1



Applied Industries:



Mainly used for advertising,decoration, logo label production, craft gifts, clothing foreign processing various manufacturing processing industries.






Shipment:


1) TNT/DHL/UPS for samples, door-to-door shipping service.
2) For batch machines, shipment is effected by Seaway (FCL or LCL).
3) We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
4) Delivery time: 3 -7 days for samples; 10-20 days for batch goods.



Payment:


1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20, 000.00.







Competitive Advantages



1. We offer high quality products at competitive price in quick delivery.

2. 100% custom pass guaranteed.

3. Good after-sale service.

4. Flexible and Untraceable payment terms.

5. Our products have been exported to Germany,  Spain, UK, Russia, USA, Brazil, Mexico, Vietnam, Australia,  Indonesia, Uruguay and many other countries.
