|Table Size:||1440*3460mm||Drive:||Hybrid Servo|
|OTT Drive:||Leadshine AC Servo||Max Speed:||45000mm/min|
desktop laser engraving machine,
co2 laser engraving machine

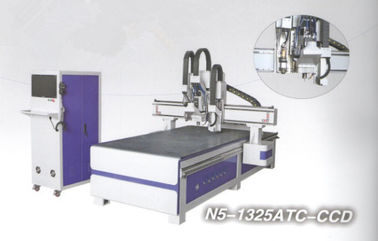

ATC Contour Cutting CNC Engraving Machine exchange double systems
1: CCD camera to read picture contours intelligently.
2: Oscillating tangential tool/OTT to cut soft material accurately.
3: ATC spindle or MTC for high efficiency sign and woodworking solutions.
4: High touque AC servo motor, high speed & precision more stable.
5: Machine bed made of industrial steel pipe, strong and stable for whole working life.
6: Quality linear guide rails and gear rack with outstand precision.
Oscillating knife: To cut KT board, PVC ( MAX thickness 7mm ),leather, fabric (one layer ) with OTT.
Spindle: To cut Acrylic, MDF, Solid, Aluminum, Brass and so on by Spindle motor.
Easily exchange double systems between CNC router and CCD cutter.
|MAX Material height||180mm|
|Spindle power||Air cooling 9KW + ATC +OTT|
|Tool holder||Linear 8 position No TAC|
|Dry air supply||0.62Mpa@27.2m/h|
|Tool holder size||ISO30ER32|
|Tool diameter||3.175, 4, 6, 8, 12.7|
|OTT drive||AC servo|
|CNC||Weihong + CCD|
|Mechanical structure||Industrial square steel pipe|
|Transmission||Ball screw for Z axis; Pully-Gear rack for X,Y|
|X,Y,Z Guide rails||Linear Rails|
|File format||HPGL or standard G code|
|Power supply||AV220V 3 Phase or 380V, 3 Phase 50-60Hz|
|Table top||Vacuum table +T slot|
|Vacuum pump||Air cooling or water cooling 7.5kw 380V or 220V, 3 Phase|
|Dust collector||High volume vacuum|
