Product Details:
Payment & Shipping Terms:
|
| Drive: | Hybrid Servo | OTT Drive: | Leadshine AC Servo |
|---|---|---|---|
| Weight: | 1400kg | Table Top: | PVC And Alluminum Alloy |
| MAX Speed: | 20000mm/min | Table Size: | 1440*2500mm |
| High Light: | UV Printed Items CNC Engraving Machine,Hybrid Servo CNC Engraving Machine,Double Systems CNC Engraving Machine |
||
Hybrid Servo CNC Engraving Machine For UV Printed Items Contour Cut.Easily Exchange Double Systemsbeteen CNC Router And
CNC Engraving Machine for Contour Cut of UV Printed Items
Standard Features:
1: Contour is output by program automatically, which saves much time and work for users.
2: Industrial steel pipe frame, with stable moving,low noise and high precision.
3: High precision helical rack pinion in X Y, plus linear rail, ensure the high precision.
4: With leadshine hybrid servo,low noise and high accuracy.
5: It can mark the contour by camera eye also can do 3D cutting, multifunction in one machine.
Applicable Fields
Oscillating knife: To cut KT board, PVC ( MAX.thickness 7mm ),leather, fabric (one layer ) with OTT.
Spindle: To cut Acrylic, MDF, Solid, Aluminum, Brass and so on by Spindle motor.
Easily exchange double systemsbeteen CNC router and CCD cutter.
Technical Parameters

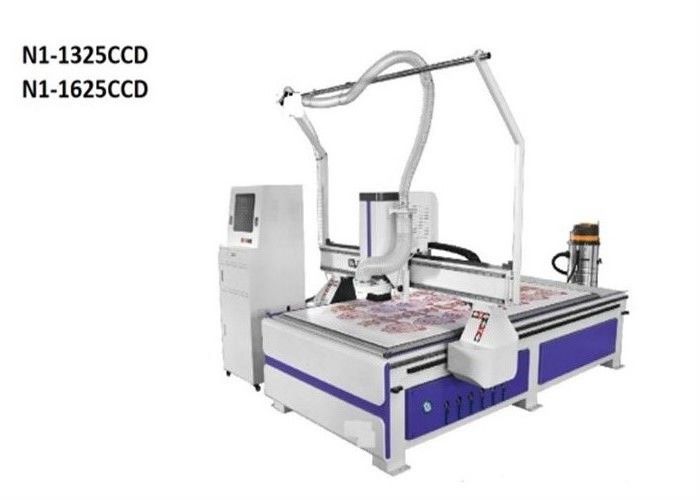

| Model | N1-1325CCD |
| Table size | 1440*2500mm |
| Working size | 1300*2500*180mm |
| MAX.Material height | 200mm |
| Spindle power | Water cooling 3kw |
| Spindle RPM | 0-24000rpm |
| Tool diameter | 3.175, 4, 6, 8, 12.7 |
| Drive | Hybrid servo |
| OTT drive | Leadshine AC servo |
| CNC | Weihong + CCD |
| Mechanical structure | Industrial square steel pipe |
| Transmission | Ball screw for Z axis; Pully-Gear rack for X,Y |
| X,Y,Z Guide rails | Linear Rails |
| Repositioning accuracy | <0.03mm/300mm |
| MAX.speed | 20000mm/min |
| File transfer | USB |
| File format | HPGL or standard G code |
| Power supply | AV220V or 380V, 50-60Hz |
| Table top | PVC and alluminum alloy |
| Dust collector | High vollume vacuum |
| External dimension | 2100*3200*1900 |
| Weight | 1100/1400kg |
| Vacuum pump | Air cooling or water cooling 7.5kw 380V |
Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2) For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping.It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods.
Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.
Company introduction:
Hefei Gere-tech International Co.Ltd.Is a firm with 10+ years of histroy.We devote ourselves in R&D on signage and Sublimation industries.Our Refine brand cutting plotters and heat press are very popular in North America,Europe, Latin America, Asia and Africa.
We alway provide quality products, reasonable prices as well as best possible after-service!We offer quality guarantee.Our service time is weekly 7days x 15hours/day .
We have superior and steady sales + service staff, which is our biggest advantage among most Chinese competitors!
We promise!We guarantee!
"Gere-tech" is your correct and long-term buiness partner!
Contact Person: Sakura Shi
Tel: +8617856699200
