| Max Printing Size: | 60cm*90cm | Printhead: | 2 Heads/3 Heads TX800 |
|---|---|---|---|
| UV Ink Color: | CMYKLCLM W V | Application:: | Metal, Bottle, Glass, Wood, Plastic, Phone Case, Acrylic... |
| Print Dimension: | 60*90cm | Dimensions: | 160*160*120cm |
| Ink System: | Negative Pressure Continuous Ink Supply System | Weight: | 360kg |
| Packing Size: | 175*169*132cm | ||
| High Light: | A1 Size Inkjet Printing Machine,3Head Printhead Inkjet Printing Machine,3Head UV Flatbed Printer |
||

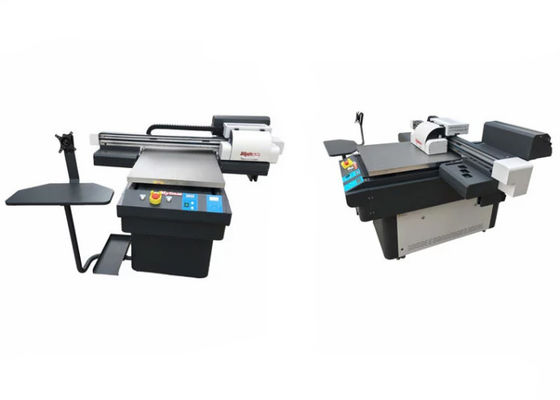

Electronic Inkjet Printing Machine A1 Size 3 Head UV Flatbed Printer Machine, Producing Different Pattens
Electronic Inkjet Printing Machine A1 size 3 head UV flatbed printer machine
Product application:
A1 Small Format 60cm*90cm White and Varnish Ink UV Printer is suitable for producing different patterns which contain relief, hollow out, flat print on different material. It is widely used on glass, wooden board, metal board, ceramic, leather, PVC, acrylic etc. It makes products value higher.
Optional Unit:
Device for bottle(Professional printing solutions) Just need customize one piece of rotary device, UV6090 could realize flatbed printing and cylinder printing.
| Model | RB6090 | ||
| Power | Power consume | W | 300 |
| Power supply | AC | 220V, 50Hz | |
| Power Connector | Three-Socket | ||
| Print head | Brand | Epson | Japan |
| Item No. | Tx800 | ||
| Number | 2 Heads/3 Heads | ||
| Print head Nozzle | nozzle | 6*180 | |
| Printing Resolution | 1440*1440 dpi | ||
| Ink | Ink Type | UV ink | |
| Ink Color |
2 heads: 7 colors(C/M/Y/K/LC/Lm/W) without varnish, 3 heads: 8 colors(C/M/Y/K/LC/Lm/W/V) with varnish |
||
| Ink Supply System | Negative Pressure Continuous Ink Supply System | ||
| Ink Capacity | 1000ml of each bottle | ||
| Ink Consume | 10ml/m2 | ||
| Print Speed | 360*360dpi | 4 pass | 3 m2/h |
| 720*720dpi | 6 pass | 1.5 m2/h | |
| 1440*1440 dpi | 8 pass | 0.75 m2/h | |
| Medium | Max medium height | 100mm | |
| Medium dipose | Standard automatic feeding system | ||
| Medium compatibility | General width inkjet medium | ||
| Medium Type | Glass/wooden board/metal board, ceramic, leather, pvc, acrylic etc | ||
| Operation Environment | Temperature | 20-25°C | |
| Humidity | 40-70 RH | ||
| Size | Max printing size | 60*90 cm | |
| Max medium width | 60 cm | ||
| Machine Dimension | 160*160*120 cm | ||
| Package Dimension | 175*169*132 cm | ||
| NW/GW | 366/370 KG | ||
| Warranty | One year for body frame(Except print head) | ||
FAQ:
1. What materials can uv printer print on ?
printers are multi-functional printers: it can print on any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...
2.Can LED UV printer print embossing effect?
Yes, it can print embossing effect, for further information or samples pics, please contact our representative salesman.
3.Does it must be sprayed a pre-coating?
some material need pre-coating , such as metal, glass, etc
4.How can we start to use the printer?
We will send the manual and teaching video with the package of the printer. Before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions. We will also offer excellent service by providing free technical support online.
5.What about the warranty?
Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
6. what’s the printing cost?
Usually,1 square meters need cost about $0.8.
Printing cost is very low.
7.where can i buy the spare parts and inks?
Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
8.what about maintenance of the printer?
About maintenance, we suggest to power on the printer once a day. If you don’t use the printer more than 3 days, please clean the print head with cleaning liquid .
