Product Details:
Payment & Shipping Terms:
|
| Dimensions: | 390mm X 540mm X 260mm | Net Weight: | 15kg |
|---|---|---|---|
| Max. Media Width: | 320mm | Max. Media Thickness: | Paepr With 400g/㎡ |
| Cutting Speed: | 100 Business Cards Per Minute | Cutting Length: | Adjustable From 1mm To 600mm |
| High Light: | die cut sticker printing machine,sticker label cutting machine |
||

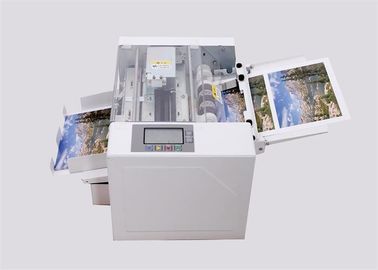

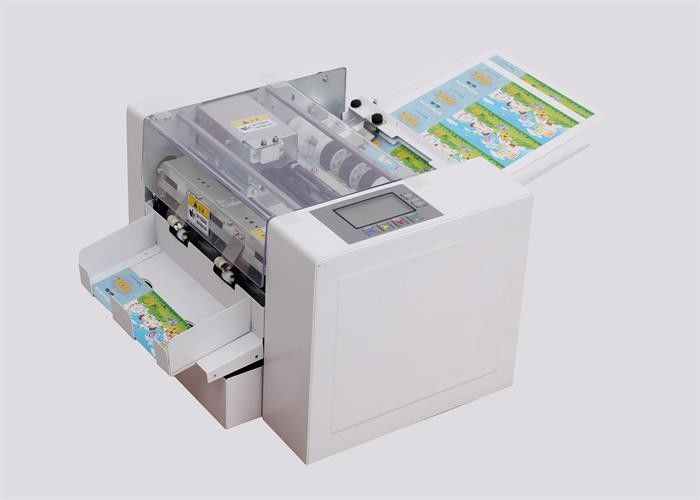

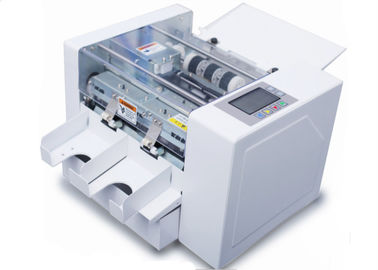

High-speed intelligent cut card machine series

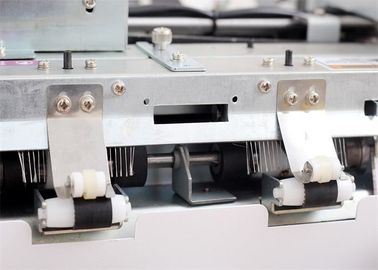

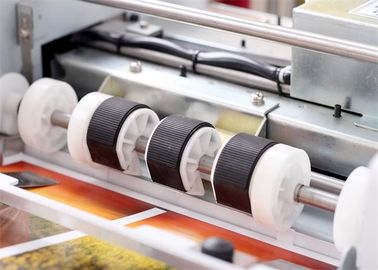

Professional rubber roller
The high performance patent design of rubber roller and the continuous rolling-paper pattern will ensure the effective feeding of different specification paper and the great extension of the rubber roller service life. The unique detection system of double pieces of paper will cope with any paper from the thickness of 0.1mm to 0.4mm easily. This professional rubber roller will prevent such bad results as slipping-paper, stuck paper and double paper.
Visual and friendly operation panel
This operational panel is visual and friendly. The message indication and fault warning are apparent.
Function Features:
The humanization design makes operation easy. Only a button will help you achieve paper choice and model-switching benchmark choice.
Motherboard possesses full intelligence CPU control system, advanced SMT process and incomparable quality and performance.
Efficient and fast A4, 50sec/100 sheets.
Accuracy the electric eye can detect the position for cutting , precision for cutting precision 100%.
Made of imported superior brushless motor, this transverse knife, with the classical and tasteful design ,supporting super long time work, will guarantee the cutting of one million pieces of papers.
Technical parameters
| model | A4 |
| Way of cutting | Vertical: cutting with a roll cutter |
| Horizontal: cutting with a lateral cutter | |
| Way of paper feeding | Automatic paper feeding in double rubbing way |
| Paper size | A4, A4+, or (195~216)mm×(279~297)mm, with unlimited length |
| Paper thickness | (180~350) gsm |
| Paper volume | 3mm or 12pcs maximum( 0.25mm) |
| Cutting size | Longitudinal: (89/85/90/95)mm, or customized |
| Horizontal: (45/50/54)mm, or (1~600)mm, fully adjustable | |
| Cutting speed | 100pcs/30seconds for name card |
| Cutting accuracy | ±0.05mm |
| Machine dimension | (390×540×260)mm, L×W×H |
| Weight | Net weight: 14.8 kgs |
| Gross weight: 19 kgs | |
| Humidity | 35%~70% |
| Operating temperature | -15℃~ +40℃ |
| Power supply | AC 90~260V, 50/60HZ, 0.5A |
Shipment:
1) Shipment is effected by Seaway ( FCL or LCL).
2) We are able to arrange shipping.It's also acceptable if buyers nominate their own shipping agent.
3) Delivery Time:15 -20 days after deposit's arrival..
Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.
Warranty:
Warranty period is 24 months.
Within warranty period, if buyers find any functional issue of machine is faulty,we can replace against faulty parts. But we dont provide free warranty for consumables or incorrect operating errors that causes any parts faulty.
