Hefei Gere-Tech International Co., Ltd.
Home ProductsLaser Engraving Machine

Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness

China Hefei Gere-Tech International Co., Ltd. certification
I'm Online Chat Now

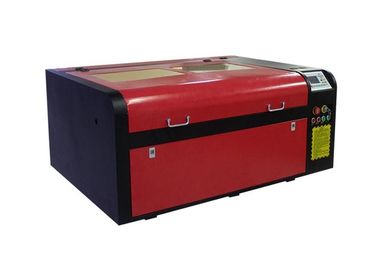

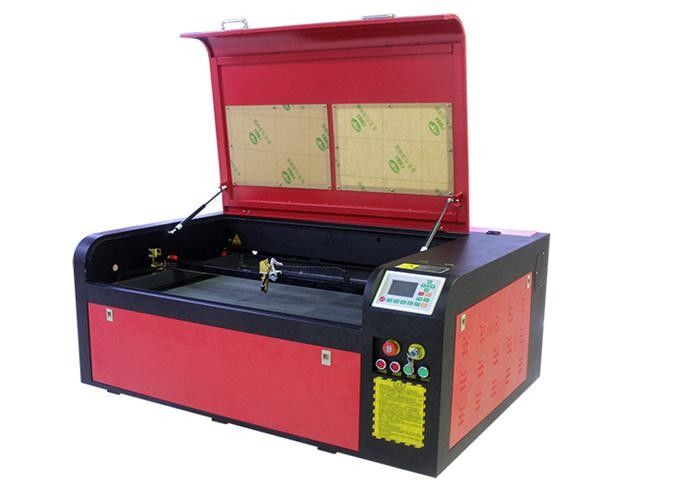

Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness

Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness
Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness

Large Image :  Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness

Product Details:
Place of Origin: CHINA
Brand Name: refine
Certification: CE
Model Number: J-6090
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD1000 /unit
Packaging Details: Plywood for CO2 Laser Engraving Machine
Delivery Time: 10 days
Payment Terms: T/T, Western Union
Supply Ability: 300 units/ month
Detailed Product Description
Motor: Stepper Motor Cutting Thickness:: 7 Mm
Laser Power: 60W/80W(Optional) Cooler: Professional Cooling Cw3000
Maximum Processing Speed: 30000mm / Min Weight: 160kg
High Light:

laser cutting and engraving machine

,

co2 laser engraving machine

900*600mm​ Laser engraving machine

Laser cutting and engraving machine for professional use

Cut and engrave non-metallic materials with a maximum depth of 7mm

Works with materials in acrylic, leather, rubber for stamp, eva, mdf, glass, jeans, bamboo, porcelain etc.

Supports CAD and CorelDraw files

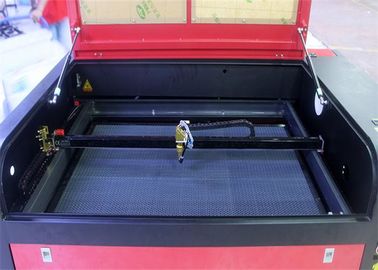

It features an aluminum cutting table that reduces damage to the material due to laser reflection

Cutting table with waste tank

Safety alarm in case of overheating

Large memory capacity making it possible to work offline Motorized up-down platform.

Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness 0



Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness 1

Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness 2





Stepper Motor Co2 Laser Engraving Cutting Machine 7 Mm Cutting Thickness 3



Specifications:

Cutting area: 900x600mm

Laser Power: 60W/80W

Power Supply: 60W/80W

Laser System: Laserwork (RuiDa)

Reflective lens F25: Internal

Focus F20 Lens: Internal

Cooler: Professional Cooling Cw3000

Maximum processing speed: 30000mm / min.

Maximum scanning accuracy: 2500dpi

Memory capacity: 128mb

Position accuracy: 0.01mm

Supported image formats: HPGL / BMP / DXF / NC / DWG / PLT

Cutting thickness: 7 mm

Packing size :135x94x59cm

Gross wet: 160kg Net weight:105kg

Optional Item:

Motorized up-down platform included (if no need, deduct usd50)

Rotary device:

simple device : +USD35

Professional type :+ USD150











FAQ



Q1. How to get the most suitable machine and best price

Please tell us the material you want to engrave or cut? Max size and thickness?



Q2. If we don't know how to use the machine, can you teach us?

Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.



Q3.How about your after-sales service?

we offer you 24 hours service by phone, Skype or Whatsapp.



Q4. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.

Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.



Q5. How we pay you?

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F. Send your order by air or by sea.
