Motor: | 42 Stepper Motor | Computer System: | Win7/win10/XP |
---|---|---|---|
Laser Power: | 40W/50W/60w/80w/100w(Optional) | Cooler: | Water-cooling |
Engraving Speed: | 1-400mm/s | Weight: | 115kg |
High Light: | co2 laser engraving machine,laser cutting and engraving machine |

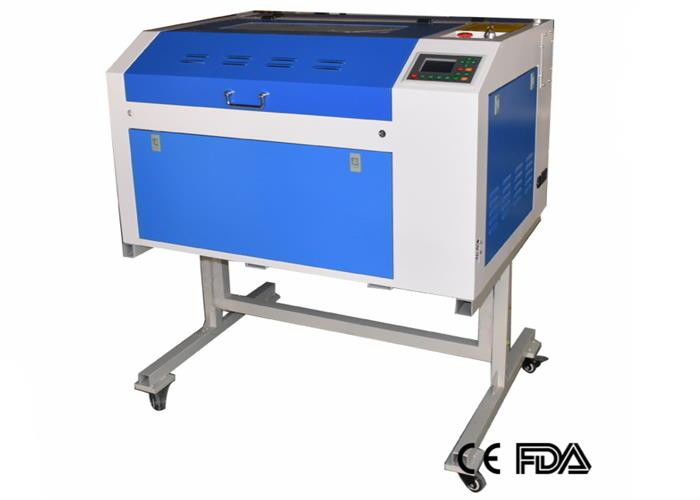

600*400mm Laser engraving machine
Laser cutting and engraving machine for professional use
Cut and engrave non-metallic materials with a maximum depth of 5mm
Works with materials in acrylic, leather, rubber for stamp, eva, mdf, glass, jeans, bamboo,
porcelain etc.
Model | L6040 |
Laser power | 40W/50W/60W/80W/100W |
Supply voltage | AC220±10% 50Hz /AC110±10% 60Hz |
Laser power supply | LM type anti-static laser power supply |
Control board | Ruida |
System environment | XP/WIN7/Win8/Win10 |
Working speed | 1-1000mm/s |
Engraving depth | 0-10mm (depending on the material) |
Positioning accuracy | <0.01mm |
Minimum shaping character | Chinese characters:2 x 2mm letters: 1 x1mm |
Data transmission interface | USB |
Support software | Ruida |
Machine weight | 115KG |
Exterior dimension | 40W/50W/60W-1025*740*565mm |
Stent size | 105*740*530mm |
Packing Method | Wooden box |
Main Features:
1.Support offline work (ie not connected to computer work).
2.Support multiple machines to share a computer.
3.Support USB line transmission, U disk transmission, cable transmission.
4.Support memory file, The fuselage can store tens of thousands of files.
5.Support a key repeat work, unlimited repeated work.
6.Supporting breakpoint carving.
7.Support 256 layered output, Different parameters can be set in different color layers, One time output is complete.
8.Support 24 hours uninterrupted high intensity work.
9.Support slope engraving, this function is especially suitable for printing industry.
10.TFT color screen, Can display processing graphics on the panel, The coordinate position of laser head processing can be accurately obtained.
11.Import linear guide and slider movement in Taiwan, Lifelong no need to replace.
